making a TensorFlow inpainting model 2.6x faster with ONNX and model surgery

I was surveying models for image inpainting: reconstructing the masked regions of an image. One real-world example is DeepCreamPy, an inpainting tool for anime-style images built on partial convolutions. Its models ship as slow TensorFlow checkpoints,¹1. The original repository was deleted by its creator, but a mirror remains on GitHub whose documentation still links the TensorFlow model downloads. which made it a good optimization target.

In the example image below, the areas colored bright green mark the regions the network fills in:

The tool takes almost 70 seconds to load one of its models, and each loaded model needs almost 6GB of RAM. There are two separate models, so running both at the same time needs approximately 12GB of RAM. This makes it difficult to run the tool as a small web service.

This post discusses how I've improved the performance of the model with negligible impact to its accuracy.

image processing time#

As an overview, we'll compare the performance between the original and altered models and code. All results were obtained on a server with 8 virtual AMD cores and 16GB of RAM.

The example image was processed²2. The original models were run on the default version of TensorFlow which is not compiled with AVX support. Support for AVX may improve TensorFlow's times, but would require building TensorFlow from source or using a community wheel, both of which are not ideal. 4 times and the overall time was averaged. There are no perceivable differences in the overall quality of the resultant image.³3. ONNX and TensorFlow computations are non-deterministic so there will always be minor differences between runs.

The other measurements are in the rest of the results.

converting the TensorFlow models to ONNX#

TensorFlow is a machine learning framework that is often used to define and train neural networks. The tool uses TensorFlow and so its model files are in the TensorFlow checkpoint format.

ONNX (Open Neural Network Exchange) is an open format for representing neural networks and machine learning models. Using the ONNX format is advantageous because many runtimes exist to run ONNX models on different platforms and hardware. There are also many tools to convert between the ONNX format and other model formats.

We use tf2onnx to convert the TensorFlow models to ONNX with no loss in model accuracy. Importantly, tf2onnx also optimizes the resultant ONNX model during conversion.

finding the model inputs and outputs#

Neural networks are represented as graphs where the nodes are neurons. Each node has inputs and outputs which accept and produce tensors (N-dimensional arrays of numbers). Every input and output in a TensorFlow graph is uniquely named to identify them. tf2onnx needs to know what the overall graph inputs and outputs are so that it can define them in the ONNX format and perform its optimizations correctly.

The easiest way to find their names is to print them out. Inside the tool's model.py predict method, we can see what the input and output tensors of the graph are:

def predict(self, censored, unused, mask):
    return self.sess.run(
        self.image_result,
        feed_dict={
            self.X: censored,
            self.Y: unused,
            self.MASK: mask
        }
    )

self.image_result is the output tensor, and self.X, self.Y, and self.MASK are input tensors. We print them out during a call of predict to show their names:

Tensor("add:0", shape=(1, 256, 256, 3), dtype=float32)
Tensor("Placeholder:0", shape=(1, 256, 256, 3), dtype=float32)
Tensor("Placeholder_1:0", shape=(1, 256, 256, 3), dtype=float32)
Tensor("Placeholder_2:0", shape=(1, 256, 256, 3), dtype=float32)

Now that we have their names, we can invoke tf2onnx's command line tool to convert the models:

$ python3 -m tf2onnx.convert \
    --checkpoint ./models/bar/Train_775000.meta \
    --output bar.onnx \
    --outputs add:0 \
    --inputs Placeholder:0,Placeholder_1:0,Placeholder_2:0
...
... - ERROR - Tensorflow op [CB1/ExtractImagePatches_1: ExtractImagePatches] is not supported
... - ERROR - Tensorflow op [CB1/ExtractImagePatches: ExtractImagePatches] is not supported
... - ERROR - Unsupported ops: Counter({'ExtractImagePatches': 2})
...

However, we get an error.

stubbing the ExtractImagePatches operation#

tf.extract_image_patches is a TensorFlow 1 operation⁴4. In TensorFlow 2, the function has been renamed to tf.image.extract_patches. that produces multiple (potentially overlapping) copies of regions of an image represented as a tensor. The exact details of how it works aren't important. The error produced by tf2onnx means that this operation can't be converted into equivalent ONNX operations.

To work around this, we mark this TensorFlow operation as a custom operation. Later, we'll handle it during the execution of the ONNX model by delegating this operation directly to TensorFlow through Python. As we'll learn, this strategy is bad for performance.

First we need a function that rewrites the offending operation node. TensorFlow's extract_image_patches operation accepts keyword arguments as parameters, but these aren't automatically converted to inputs that we can read from during model execution. So we construct new constants for keyword arguments such as ksizes and add them as inputs to our custom operation node.

from tf2onnx import utils, constants

def convert_extract_image_patches(ctx, node, _name, _args):
    node.type = "ExtractImagePatches"
    node.domain = constants.CONTRIB_OPS_DOMAIN

    ksizes = node.get_attr_value("ksizes")
    # ...

    ksizes_const = ctx.make_const(
        utils.make_name("ksizes_const"),
        np.array(ksizes, dtype=np.int32)
    )
    # ...

    # Remove all node attributes.
    for key in list(node.attr.keys()):
        del node.attr[key]

    # Add attribute values as inputs to operation.
    ctx.replace_inputs(node, node.input + [
        ksizes_const.output[0],
        # ...
    ])

Then, we invoke tf2onnx's conversion API with our ExtractImagePatches handler:

# ...
(onnx_graph, _) = tf2onnx.convert.from_graph_def(
    graph, input_names=inputs, output_names=outputs,
    custom_op_handlers={"ExtractImagePatches": (convert_extract_image_patches, [])},
    extra_opset=[utils.make_opsetid(constants.CONTRIB_OPS_DOMAIN, 1)],
)
# ...

With this, the TensorFlow models are converted without errors.

The produced ONNX models are already less than 15MB in size, down from 188.8MB. One reason for this is that the model uses a GAN (generative adversarial network) structure which consists of a generator (that produces plausible image fills) and a discriminator (that essentially decides whether the fills are accurate or not). Since the model output doesn't use the discriminator, this entire part of the graph has been pruned away.

running the ONNX models#

To run our new ONNX models, we use the onnxruntime package:

import onnxruntime

session_options = onnxruntime.SessionOptions()
session = onnxruntime.InferenceSession("bar.onnx", session_options)

def predict(self, censored, unused, mask):
    # ...
    [output] = session.run(["add:0"], {
        "Placeholder:0": censored,
        "Placeholder_1:0": unused,
        "Placeholder_2:0": mask,
    })

    # Return our only output.
    return output

But some adjustments need to be made for this code to work.

delegating ExtractImagePatches#

To handle our stubbed ExtractImagePatches operation, we delegate its execution directly to TensorFlow. We use the onnxruntime_extensions package to register a handler for this operation:

import tensorflow as tf
from onnxruntime_extensions import onnx_op, PyCustomOpDef

tf = tf.compat.v1
tf.enable_eager_execution()

@onnx_op(op_type="ExtractImagePatches",
         inputs=[PyCustomOpDef.dt_float,
                 PyCustomOpDef.dt_int32,
                 ...],
         outputs=[PyCustomOpDef.dt_float])
def extract_image_patches(arr, ksizes, ...):
    return tf.extract_image_patches(
        arr,
        ksizes.tolist(),
        # ...
    ).numpy()

ONNX converts inputs to the ExtractImagePatches into numpy arrays and passes them to our handler. We pass these inputs into TensorFlow's extract_image_patches operation and then convert the result back into a numpy array which we return.

We also need to tell ONNX that our Python code contains custom operation handlers:

from onnxruntime_extensions import get_library_path

# ...
session_options.register_custom_ops_library(get_library_path())

With this, all the operations in the ONNX models can be correctly executed.

batching prediction requests#

Unfortunately, after some trial and error, if we run our model we get this error:

INVALID_ARGUMENT : Got invalid dimensions for input: Placeholder_2:0 for the following indices
index: 0 Got: 1 Expected: 8
Please fix either the inputs or the model.

Our model inputs expect not 1, but exactly 8 cropped image areas to be passed in. Why is this?

Unfortunately, the original code hard-codes a batch size in the construction of its neural network:

def __init__(self, input_height=256, input_width=256, batch_size = 1, ...):
    self.batch_size = batch_size
    # ...

def build_model(self):
    # ...
    self.X = tf.placeholder(tf.float32, [self.batch_size, ...])
    # ...

The batch size controls how many input samples should be provided to the network at the same time. Increasing the batch size during training can reduce how long the model takes to train by letting the GPU do more work at once. It's likely that batch_size was set to 8 during training. Normally, batch_size should be set to None to allow you to train and run the model with a variable number of input samples.

The original code using TensorFlow doesn't suffer from this problem as it reconstructs the network graph with a batch_size of 1 from scratch. So TensorFlow only loads the saved checkpoint weights into 1 part of the network instead of all 8.

We could fix this by duplicating the inputs 8 times:

def predict(self, censored, unused, mask):
    censored = [censored] * 8
    unused = [censored] * 8
    mask = [censored] * 8

    # ...
    [output] = session.run(...)

    # Return the first result from our batched output.
    return output[0]

But this would be very inefficient. The code runs predict separately for every masked (censored) region in an image and so one image can require multiple prediction requests. Instead, we collect all prediction requests into a list and run the model on them in groups of 8. If we don't have enough requests to make a group of 8, we add useless inputs until we do:

BATCH_SIZE = 8

def run_predictions(requests, ...):
    results = []
    for start_index in range(0, len(requests), BATCH_SIZE):
        batch = requests[start_index:start_index + BATCH_SIZE]
        batch_size = len(batch)

        # Fill to required size.
        while len(batch) < BATCH_SIZE:
            batch.append(batch[0])

        # Run model on batch.
        # ...
    return results

Now the model will always receive 8 inputs to be processed.

trying it out#

The code works! The model load time takes just a few seconds and the peak memory usage has halved to less than 3GB. But now it takes over 17 seconds (3x slower) to process the example image! Next we'll explore how we improve the ONNX model and code.

unbatching the network#

The example image contains 17 areas coloured green which produces 17 inputs for the ONNX model to process. However, to make a multiple of 8, we need to add 7 useless inputs. We can avoid these wasted computations by removing the need for batching from the ONNX model.

In machine learning, model surgery refers to modifying a neural network after it's already been trained. We use it to alter the ONNX graph so that it accepts 1 input instead of 8.

exploring the model graph#

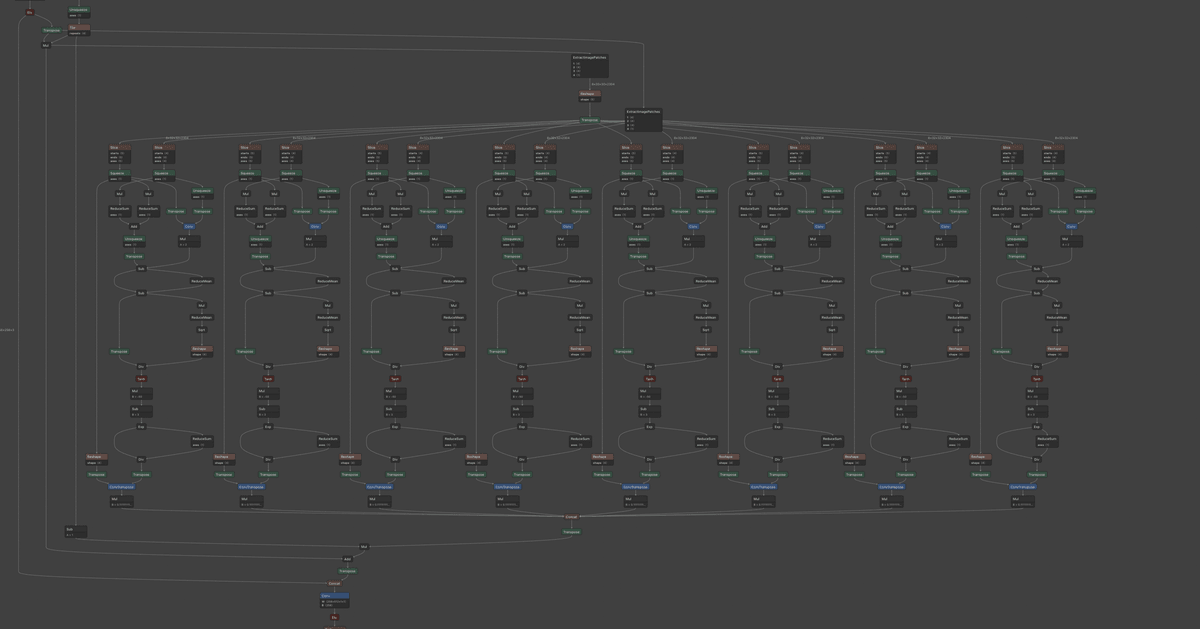

Netron is an online application that allows us to visualize an ONNX model's nodes and edges. We use Netron to visually identify nodes and parts of the model graph that need to be pruned and modified. If we open our ONNX model, we find a component that has been duplicated 8 times:

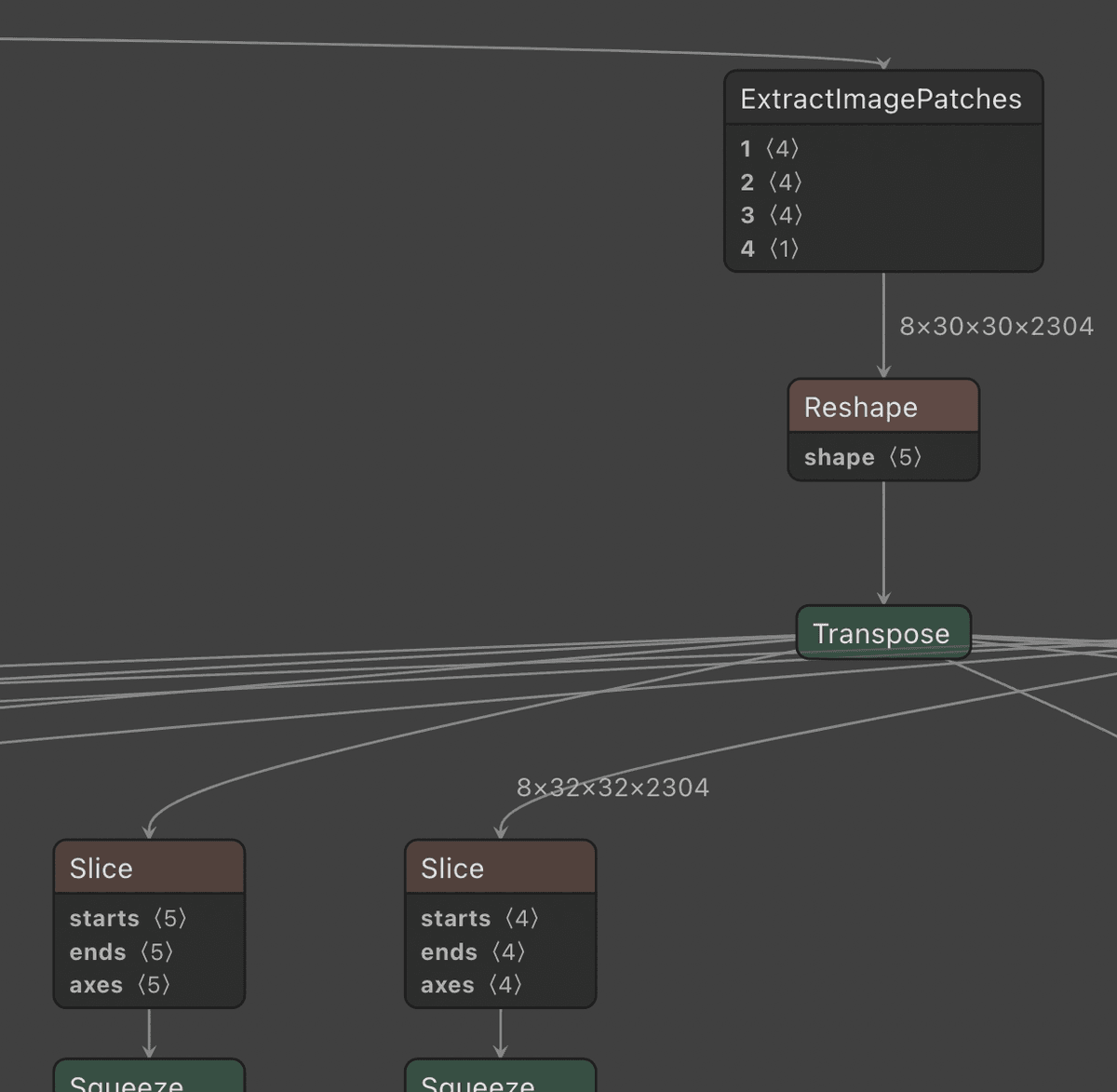

If we zoom in to the top of this subgraph, we can examine these components' inputs more closely:

The custom ExtractImagePatches operation outputs 8 combined tensors, each of size 30 x 30 x 2304. These tensors pass through Reshape and Transpose operations before passing through a Slice operation⁵5. Two Slice operations are depicted because each component actually receives inputs from two different ExtractImagePatches operations, not just one. that selects just 1 of the tensors to feed into a batch component.

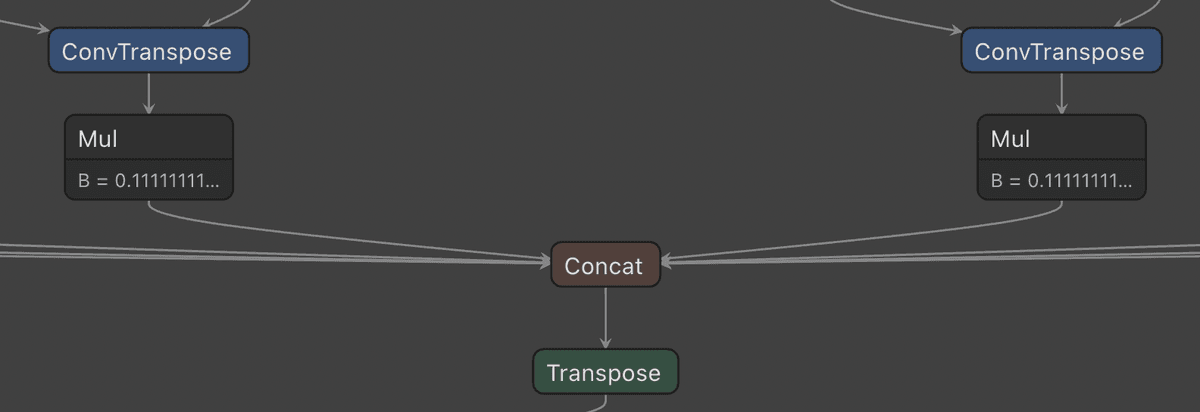

If we zoom into the bottom of the overall subgraph, we see that the outputs of all 8 batch components go into a single Concat operation node:

Now we have all the information needed to remove batching.

modifying the graph#

Most operations in a neural network are adaptive to their inputs. This means we can provide tensors of different input sizes to operations, and the output tensor sizes will automatically adjust to compensate. So we only need to make a few precise modifications to the model graph to remove batching.

import onnx

model = onnx.load_model("bar.onnx")

def find_node_by_name(name):
    for node in model.graph.node:
        if node.name == name:
            return node

pruning the inputs to Concat#

Concat is an operation that combines all the inputs it receives into one output tensor. We retrieve the Concat node by its name and delete all inputs going into it except the first one:⁶6. We also need to ensure that the Slice operation feeding into the first batch component selects the first tensor from the output of ExtractImagePatches. Fortunately, this is already the case.

subgraph_end = find_node_by_name("CB1/concat_6")
del subgraph_end.input[1:]

Now 7 of the 8 batch components don't have their outputs being used anywhere. Later, the model optimization process will remove these unused batch components entirely.

fixing the tensor size of Reshape#

We also need to modify the Reshape operation, which transforms a tensor of one size into another as long as the total number of elements stays the same.

[[1, 2],
 [3, 4]]

[[1, 2, 3, 4]]

If we click on the Reshape operation in Netron, we see that it expects to transform a tensor from ExtractImagePatches of size 8 x 30 x 30 x 2304 into a tensor of size 8 x 1 x 1 x 900 x 2304:

However, after removing batching, ExtractImagePatches will only produce a tensor of size 1 x 30 x 30 x 2304. To compensate, we need to change Reshape to produce a tensor of size 1 x 1 x 1 x 900 x 2304. The Reshape operation retrieves the intended tensor size from an initializer node.

def find_initializer_by_name(name):
    for initializer in model.graph.initializer:
        if initializer.name == name:
            return initializer

We then update the tensor size stored in the initializer:

reshape = find_node_by_name("CB1/Reshape_1")
reshape_const = find_initializer_by_name(reshape.input[1])
reshape_const.CopyFrom(from_array(np.int64([1, 1, 1, 900, 2304]), reshape_const.name))

Now Reshape will correctly transform its input tensor.

fixing the model input and output sizes#

We also need to update the dimensions of the model inputs and outputs to accept and produce just 1 tensor instead of 8 combined tensors:

for node in list(model.graph.input) + list(model.graph.output):
    node.type.tensor_type.shape.dim[0].dim_value = 1

Without this change, onnxruntime will raise an exception when we provide an input of an unexpected size.

performing model optimization#

Finally, we manually perform model optimization so that unused nodes and operations can be pruned from the graph. We use tf2onnx's API for this:

import onnx
from tf2onnx.graph import GraphUtil

# ...
model = GraphUtil.optimize_model_proto(model)
onnx.checker.check_model(model, full_check=True)

We invoke ONNX's check_model function to verify that our graph is still valid after performing our model surgery.

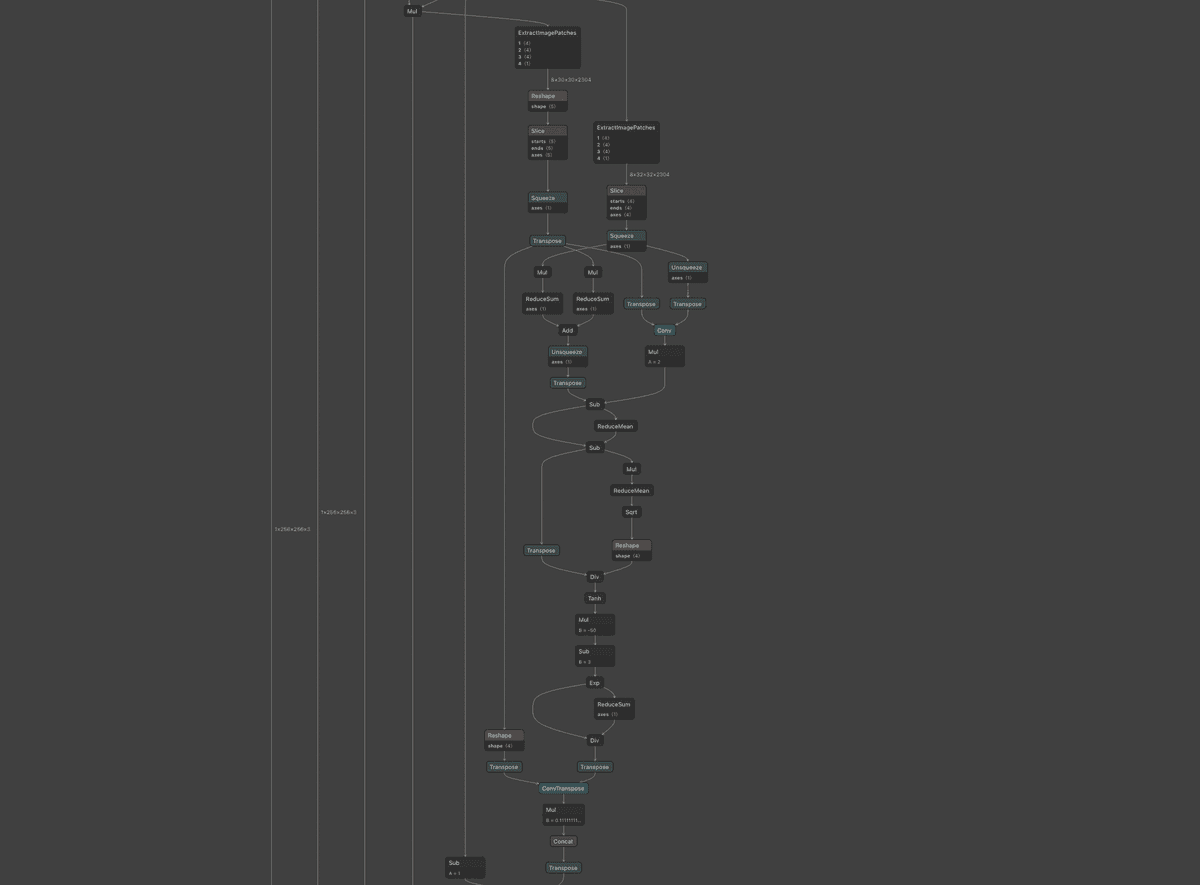

If we save the model and load it into Netron, we can see the graph has become a lot simpler:

trying it out#

After these changes, processing the example image takes under 14 seconds, a 15% improvement from our initial ONNX model. We still have more optimizations to make though!

implementing ExtractImagePatches in ONNX natively#

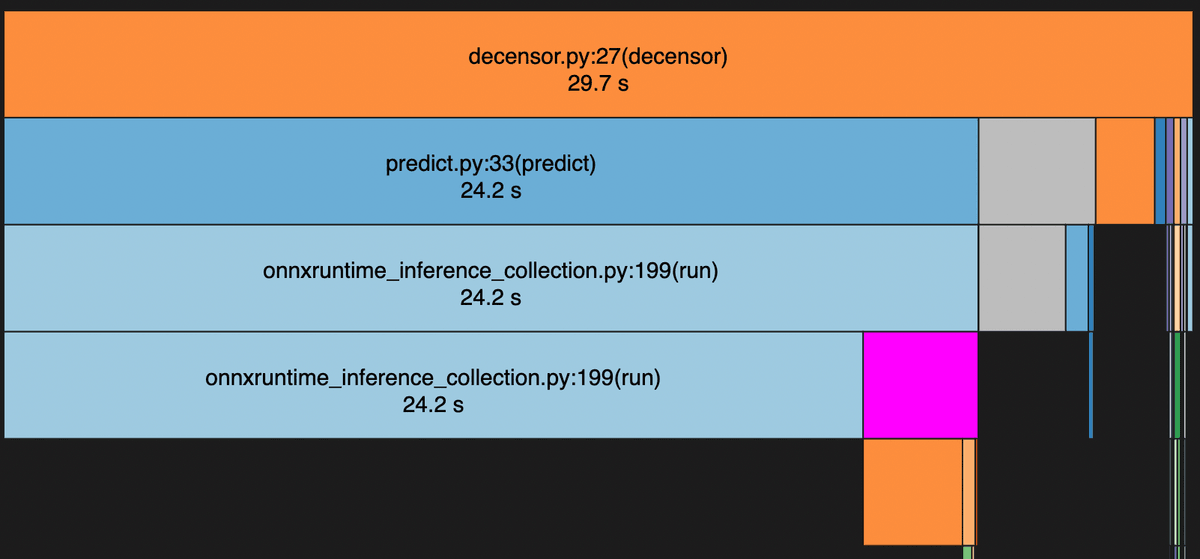

If we run cProfile to profile our Python code, and visualize the results using SnakeViz, we can get a better idea of where the bottlenecks are in the code:

The region highlighted in purple is the relative time spent in a function named _on_pyop_invocation. This is the function that invokes our custom ExtractImagePatches handler which delegates to TensorFlow. TensorFlow is normally very fast, so why is so much time being spent here?

If we dig deeper, we notice that most of the time is actually used in numpy's tolist method. When we return a numpy array from our custom operation handler, ONNX converts this array into a Python list before converting it again into its own internal tensor representation. Constructing Python lists with millions of elements can easily become very slow.

The problem is much worse than at first glance. When running Python code, the Python interpreter's GIL (global interpreter lock) needs to be acquired. Even though onnxruntime (which runs outside of Python) has builtin support for multithreading, only one ExtractImagePatches operation can be running at any time, which means it has to wait for these operations to complete before continuing.

We'll resolve these issues by implementing the ExtractImagePatches operation in ONNX natively.

rewriting ExtractImagePatches#

We need to transform ExtractImagePatches into simpler operations that ONNX supports. Fortunately, a comment on the tensorflow-onnx repository has a prototype that emulates it with a TensorFlow convolution, and convolutions are essential to computer vision so ONNX naturally supports them.

The exact details of how we adapt this prototype aren't important. To use it in our model, we write a function that generates a TensorFlow graph emulating tf.extract_image_patches:

import tensorflow as tf

def extract_image_patches(sizes, ...):
    # ...

    @tf.function
    def function(tensor):
        # ...
        patches_simulation = tf.nn.conv2d(tensor, ...)

        # ...
        return ...

    return function

Our extract_image_patches function accepts the same keyword arguments as TensorFlow's tf.extract_image_patches function, and returns a TensorFlow graph that accepts a single tensor input. The @tf.function annotation is what compiles the nested Python function into a TensorFlow graph.

We also define a helper function that takes a tf2onnx graph and copies it into another tf2onnx graph. A tf2onnx graph is a data structure that tf2onnx creates during the conversion process to process and transform TensorFlow graphs. It's similar in structure to an ONNX model graph.

from tf2onnx.graph import Graph

# Insert the graph `copy` into the graph `g` while
# linking the input `input_name` in `g` to the input of `copy`.
def insert_graph(g: Graph, copy: Graph, input_name):
    # We want to process the nodes in `copy` in a particular
    # order so that we never encounter an undefined input.
    copy.topological_sort(copy.get_nodes())

    # `new_output_names` maps names from `copy` to names in `g`.
    new_output_names = {copy.input_names[0]: input_name}

    # Copy each node in the `copy` graph.
    for node in copy.get_nodes():
        if node.type == "Placeholder":
            continue

        # For the current node, find the inputs in `g` that should be accepted.
        inputs = [new_output_names[name] for name in node.input]

        # Make a new node in `g` with the same data as `node`.
        new_node = g.make_node(node.type, inputs, attr=node.attr,
                               shapes=node.output_shapes, dtypes=node.output_dtypes)

        # Add the output of the new node in `g` into our mapping.
        new_output_names[node.output[0]] = new_node.output[0]

    # Return the name of the final output of our inserted graph in `g`.
    return new_output_names[copy.outputs[0]]

Then, we define a rewriter function that takes a tf2onnx graph, looks for ExtractImagePatches nodes, and rewrites them with our emulated version:

from tf2onnx.graph import GraphUtil, Graph, Node
from tf2onnx.graph_matcher import OpTypePattern, GraphMatcher

def rewrite_extract_image_patches(g: Graph, ...):
    # Look for nodes of type `ExtractImagePatches`.
    pattern = OpTypePattern("ExtractImagePatches", name="extract")
    matches = GraphMatcher(pattern).match_ops(ops)
    if not matches:
        return

    for match in matches:
        # Get the `ExtractImagePatches` node.
        node: Node = match.get_op("extract")

        # Create a TensorFlow graph.
        f = extract_image_patches(
            sizes=node.get_attr_value("ksizes"),
            # ...
        )

        # The tensor size of the subgraph input.
        input_signature = [np.empty([1, 32, 32, 256], dtype=np.float32)]

        # Convert our `ExtractImagePatches` TensorFlow graph into an ONNX model.
        f_model, _ = tf2onnx.convert.from_function(f, input_signature=input_signature)

        # Create a tf2onnx graph from our ONNX model.
        f_graph = GraphUtil.create_graph_from_onnx_model(f_model)

        # Insert the tf2onnx graph into our overall graph.
        output_name = insert_graph(g, f_graph, node.input[0])
        g.replace_all_inputs(node.output[0], output_name)

        # Remove the original `ExtractImagePatches` node.
        g.remove_node(node.name)

input_signature needs to be manually specified because tf2onnx doesn't know what the sizes of inputs we are providing to our generated subgraph are.

Finally, we pass our rewriter to tf2onnx's API:

# ...
onnx_graph, _ = tf2onnx.convert.from_graph_def(
    graph, input_names=inputs, output_names=outputs,
    custom_rewriter=[rewrite_extract_image_patches],
)

tf2onnx will run our rewriter on the tf2onnx graph it generates during the model conversion process.

Note that this procedure is not specific to modifying these models. You could write similar functions to replace any node of your choosing with a TensorFlow graph if you had other unsupported operations in your model.

trying it out#

After these changes, processing the example image takes ~4.6 seconds, a slight improvement over the original TensorFlow model, and a huge improvement over our initial ONNX model.

Now that we know we can emulate ExtractImagePatches with other supported ONNX operations, we can write a more comprehensive ExtractImagePatches rewriter for use in converting any TensorFlow model. I've submitted a pull request in the tensorflow-onnx repository that does this.

other optimizations#

These optimizations relate to the Python code that uses the models, rather than the models themselves.

finding connected components quickly with scipy.ndimage.measurements.label#

If we examine the SnakeViz visualization, we see that another function that the code spends a disproportionate amount of time in is the find_regions function (colored in gray). This function is in the tool's utils.py file.

find_regions returns all the connected components of an image. More specifically, we use it to get the coordinates of all the mask areas (colored in green).

The original implementation is standard, but it's written in pure Python which is slow. We can make it significantly faster by using the measurements.label function from the SciPy package which is partially implemented in C. measurements.label replaces each green pixel with an index representing the connected component that it belongs to, and every other pixel with the number 0.

GG..
G...
..GG
..GG

[(0, 0), (1, 0), (0, 1)]
[(2, 2), (2, 3), (3, 2), (3, 3)]

1100
1000
0022
0022

Further details on this function are available in SciPy's documentation.

Based on a StackOverflow answer, we can rewrite the find_regions function using measurements.label⁷7. Be careful not to use this function directly as scipy.ndimage.measurements.label(...)! The nested modules in scipy are loaded dynamically which can incur significant overhead. and numpy:

import numpy as np
from scipy.ndimage import measurements

def find_regions(image, mask_color):
    pixels = np.array(image)
    array = np.all(pixels == mask_color, axis=2)
    labeled, n_components = measurements.label(array)
    indices = np.moveaxis(np.indices(array.shape), 0, -1)[:, :, [1, 0]]

    regions = []
    for index in range(1, n_components + 1):
        regions.append(indices[labeled == index].tolist())

    # Sort by largest areas first.
    regions.sort(key=len, reverse=True)
    return regions

This function now runs near instantly, and image processing time drops from ~4.6 seconds to ~2.8 seconds.

maximizing CPU utilization with Python multithreading#

Even though TensorFlow and ONNX are both multithreaded, it appears that neither of them fully use all the CPU cores during model inference. We can exploit this to further speed up our image processing. First we need to understand how the decensor function works. It's roughly equivalent to this function written in pseudocode:

def decensor(image):
    cropped_masks = find_masks(image)
    for cropped_mask in cropped_masks:
        replacement = predict(cropped_mask, ...)
        paste_replacement_onto_image(image, replacement)
    return image

decensor is the actual function that takes an image and performs all the steps to remove censors from it. The exact implementation can be found in this file.

In the above pseudocode, predict is the function that takes an image and runs an ONNX model on it. If we had an image with 4 masks, then the time spent in Python and ONNX would look like this:

Time:     | 0    5   10   15   20   25
Python:   | ###    #    #    #    #
ONNX:     |    1111 2222 3333 4444

The Python code has to wait for the current predict call to finish before moving onto the next one.

What if we rewrite this function to collect all the prediction requests first, and then run all the predictions simultaneously?:

def decensor(image):
    cropped_masks = find_masks(image)
    replacements = predict_simultaneously(cropped_masks, ...)
    for replacement in replacements:
        paste_replacement_onto_image(image, replacement)
    return image

Then, because we aren't fully utilizing the CPU with just one predict call, the time spent in Python and ONNX might look like this:

Time:     | 0    5   10   15   20   25
Python:   | #####             ##
ONNX:     |      1111  3333
          |         2222  4444

Python is single-threaded, so we haven't saved any time there. But the ONNX model runs can now overlap, reducing the overall time to process an image.

In the actual Python code, we implement the predict_simultaneously function with a ThreadPool:

from multiprocessing.pool import ThreadPool

# ...
with ThreadPool() as pool:
    results = pool.map(predict_region, regions)
# ...

pool.map runs a function on separate Python threads⁸8. How can Python have threads if it's single-threaded? Only one Python thread can hold the GIL at any time. for each element in a list. This only works because onnxruntime releases the GIL before running model inference, allowing the Python code to continue to execute calls to predict_region. If it didn't release the GIL, then the above code would be equivalent to:

# ...
results = []
for region in regions:
    result.append(predict_region(region))
# ...

This optimization is more important the more CPU cores you have.⁹9. Does this optimization work on the original TensorFlow models? I tried this but it actually increased image processing time even though the CPU was clearly being underutilized. It is unclear what the cause is. TensorFlow does release the GIL. With this change, processing the example image drops from ~2.8 seconds to our final time of ~1.85 seconds.

the rest of the results#

The other three measurements come largely from the conversion to ONNX.

peak memory usage#

Memory usage is for just one model. Running the inpainting and mosaic models simultaneously has gone from needing approximately 12GB of RAM to under 4GB.

import resource
usage = resource.getrusage(resource.RUSAGE_SELF).ru_maxrss
print("Peak memory usage in KB:", usage)

model size on disk#

As above, this is only the disk usage for one model.

model load time#

As above, this is only the load time for one model, which has gone from almost 70 seconds to under a second.

conclusion#

We set out to improve the performance of the model and along the way we explored a variety of techniques for optimizing and surgically manipulating neural networks and ONNX models. In the end, we significantly reduced its memory usage and model load time, and cut the image processing time from ~4.85 seconds down to ~1.85 seconds which is a result that I'm happy with.
